Leak Test Instruments
Precision instruments for mass flow, pressure decay, and differential pressure testing in production environments.

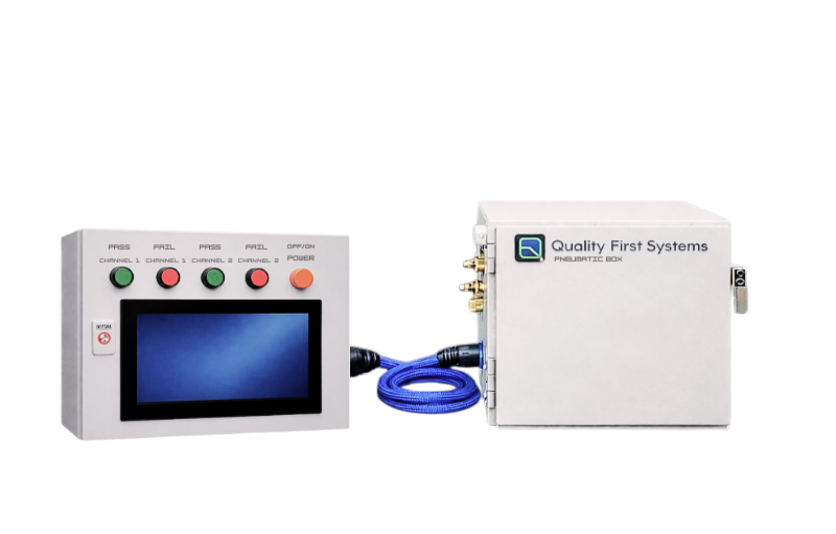

LTI-250E
Modular Leak Test Instrument with Pneumatic Box
The LTI-250E is a versatile instrument that handles mass flow and pressure decay tests. The pneumatic box mounts separately from the electrical enclosure, which gives you flexibility in how the system is laid out on the line. It is a good fit when you need multiple test types, concurrent testing, or tight integration with machine controls.
Test Methods
Features
- •Mass flow transducer with corrected airflow readings
- •Compensates for barometric pressure and temperature changes
- •Gage-pressure decay and pressure differential decay methods
- •Modular pneumatic system configurable per application
- •Pneumatic box can be located separately from electrical enclosure
- •Stores leak rate data and test results for traceability
- •10-inch HMI touchscreen with updated PLC platform
- •Non-obsolete components with 10+ year spare parts support

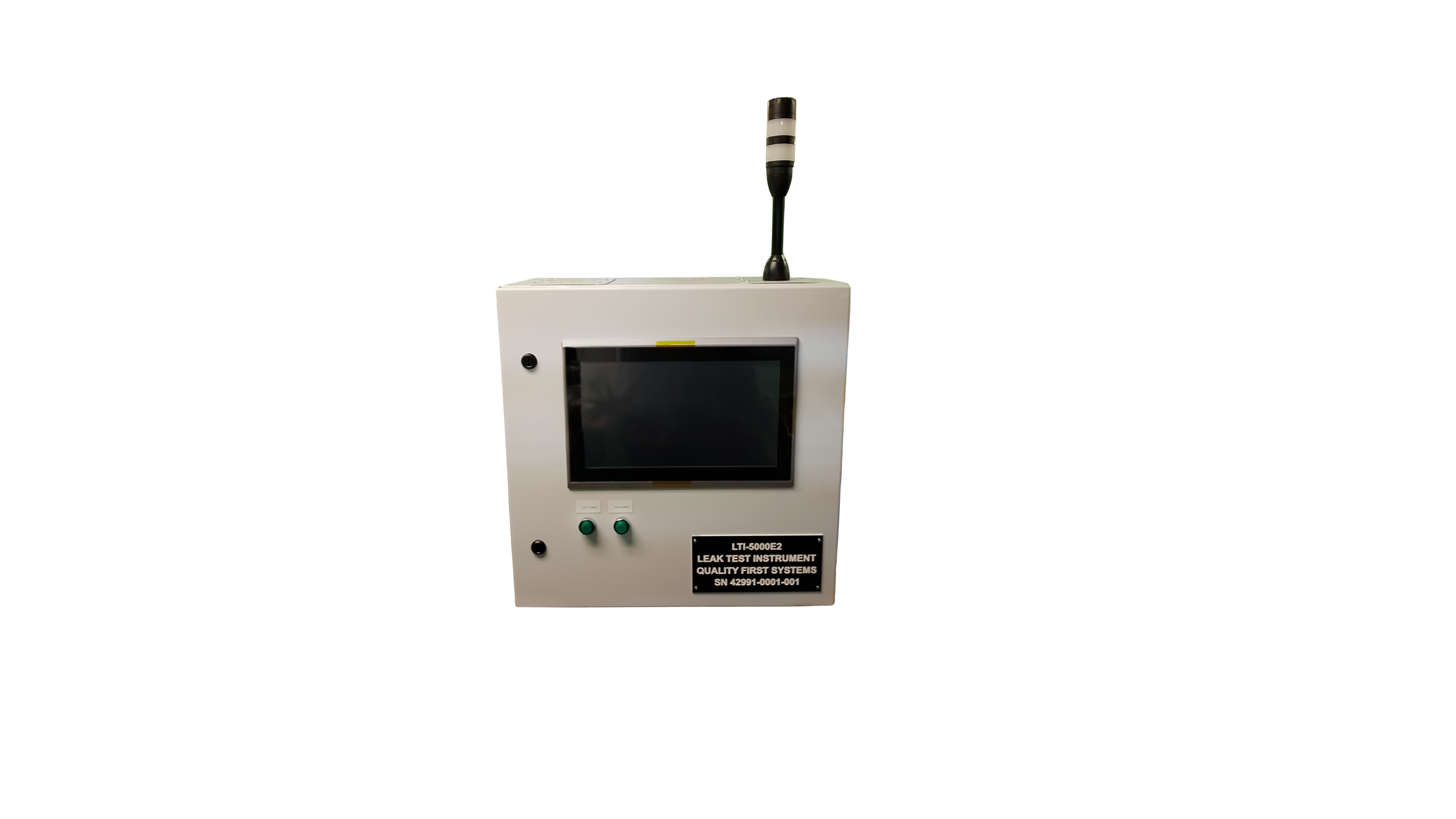

LTI-5000
PC-Based Leak Test Instrument
The LTI-5000 is our PC-based unit for mass flow and pressure decay testing. If your facility needs the instrument on a plant network for data collection and reporting, this is the one to look at. It logs test start/completion times, channel data, limit tables, and end-of-test readings.
Test Methods
Features
- •PC-based system for plant network integration
- •Most flexible data collection capabilities
- •Test start and completion time logging
- •Test channel and limit table tracking
- •End-of-test pressure and flow reading capture
- •Test result recording with data export verification
- •Suitable for networked manufacturing environments
- •Adaptable to a wide range of testing applications

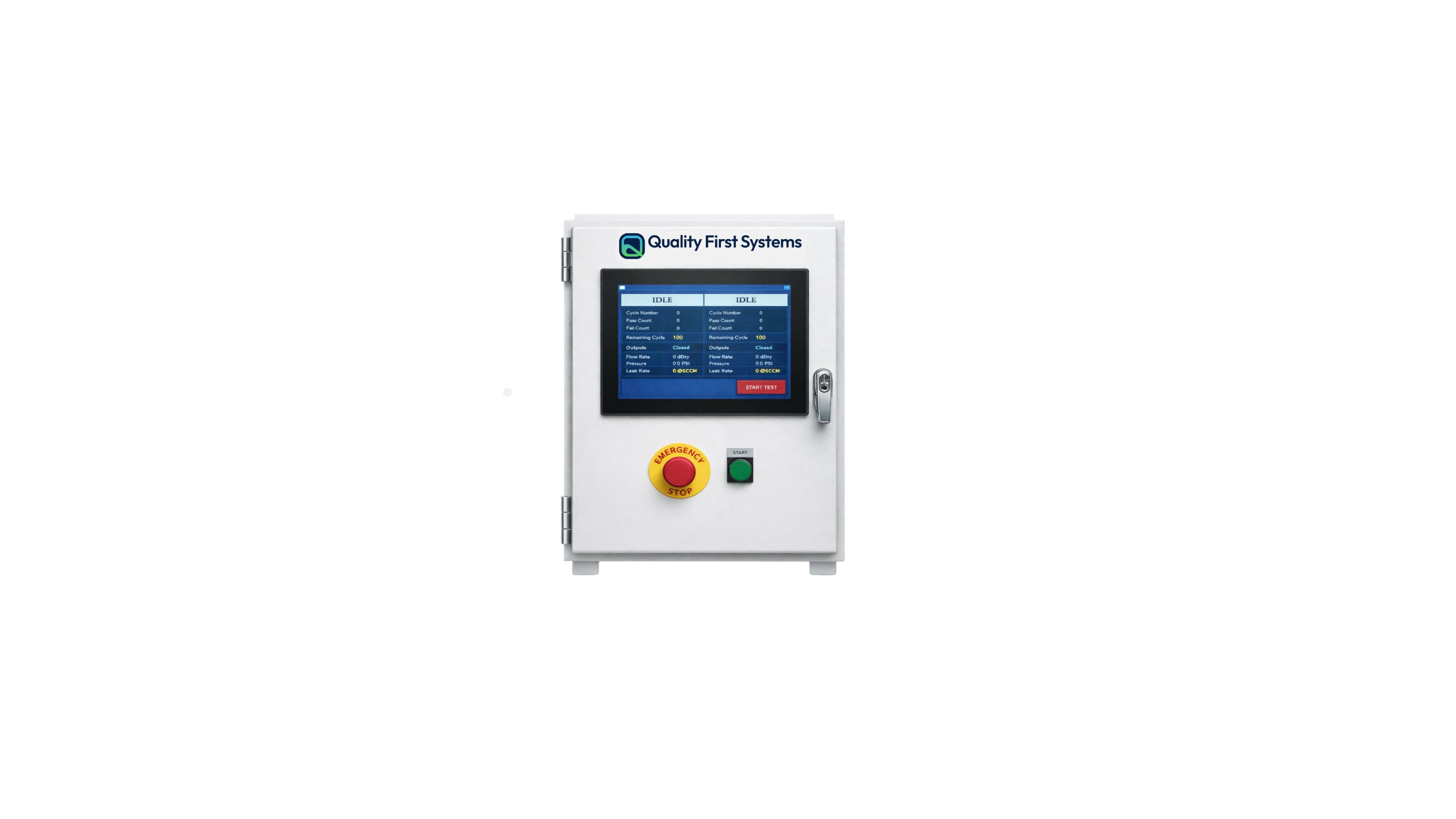

LTI-05 NEXTGEN
Integrated All-in-One Leak Test System
The LTI-05 NEXTGEN puts the electrical and pneumatic systems into a single enclosure. Same testing capabilities as the LTI-250E, but with a smaller footprint and simpler installation. Good choice when floor space is tight or you want to minimize the number of connections during setup.
Test Methods
Features
- •Electrical and pneumatic systems in one integrated unit
- •Reduced system footprint vs. modular configuration
- •Simplified installation and setup
- •Same testing capabilities as modular LTI-250E
- •Redesigned with modern, non-obsolete components
- •10-inch HMI touchscreen interface
- •Updated PLC platform for improved performance
- •Minimum 10-year spare parts availability
Shared Platform Architecture
The LTI-250E and LTI-05 NEXTGEN share the same updated platform. Both have been redesigned with modern, non-obsolete components, a 10-inch HMI touchscreen, and an updated PLC. All components are readily available with a design objective of ensuring spare parts support for a minimum of 10 years.
